SURFACE-EXT

for Slurry Surfacing Reinforcement

Surface-EXT is an alkali and acid-resistant glass fiber designed to extend the life of micro surfacing and slurry seal pavement applications. This easy-to-use treatment improves pavement flexibility and long-term durability. Thanks to its specific gravity like that of the aggregate, SURFACE-EXT can distribute evenly throughout the slurry mix. Furthermore, it can be used at any dosage to suit project needs. Typical dosage is 0.2% of fiber by dry aggregate weight

Key Benefits

  • Increases pavement flexibility as demonstrated through the Flexural Tension Test

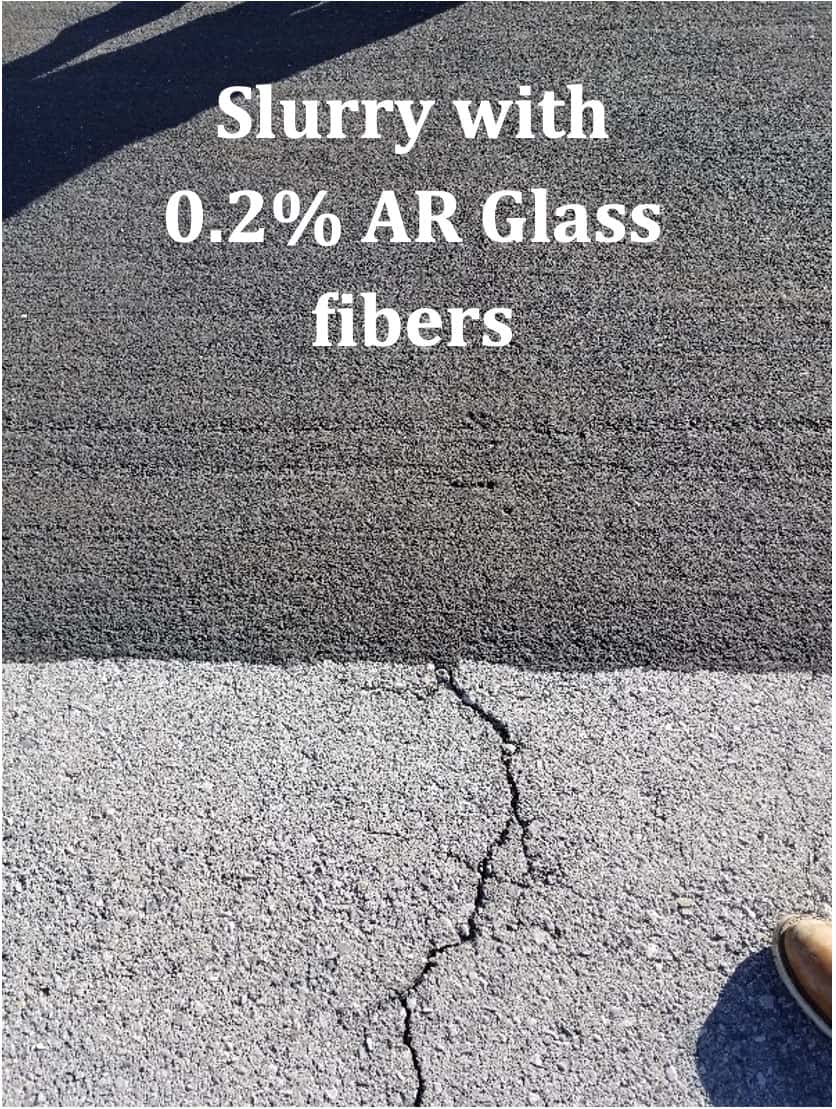

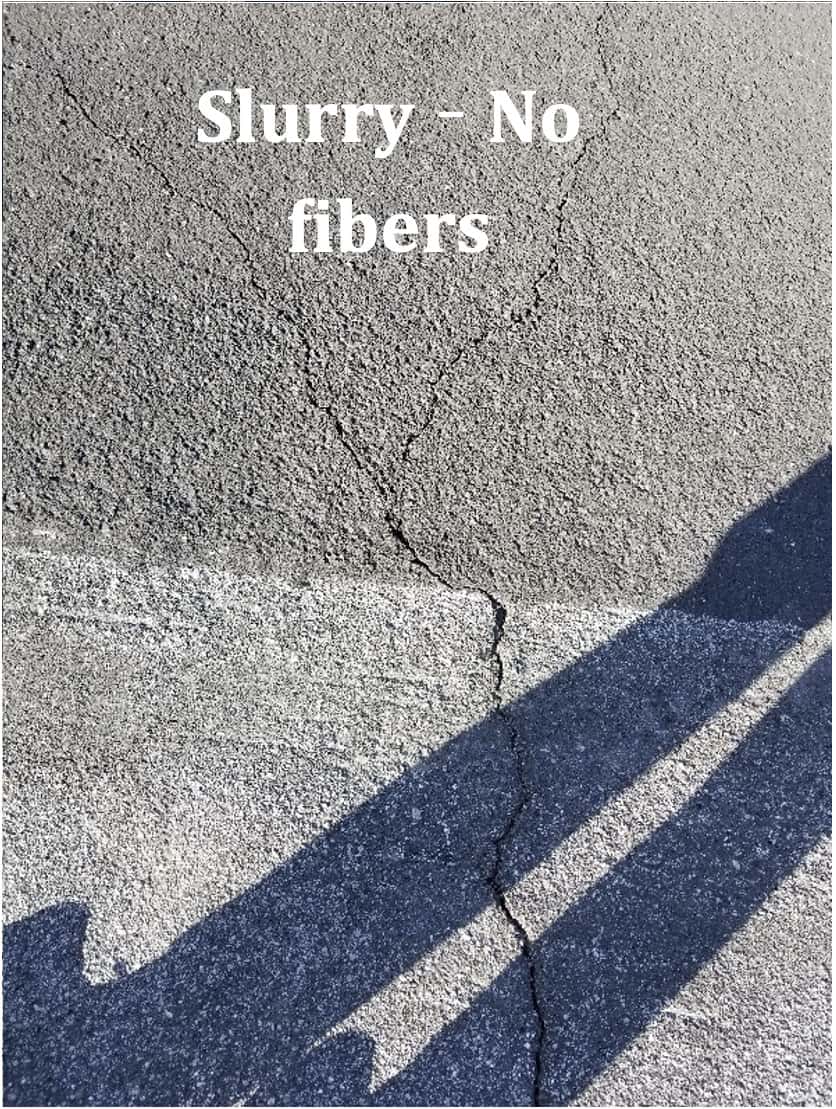

  • Mitigates reflective cracking confirmed by several test sites (See photos)
  • Improves long-term durability with up to 60% improvement in Wet Track Abrasion
    Tests with certain mix designs
  • Low additional cost with added fiber making the cost per square meter just pennies
  • Suitable for all slurry seal and micro surfacing applications
  • Alkali and acid-resistant glass
  • High split efficiency and excellent dispersion
  • No increase in water demand
  • Maintains excellent workability and mechanical performance

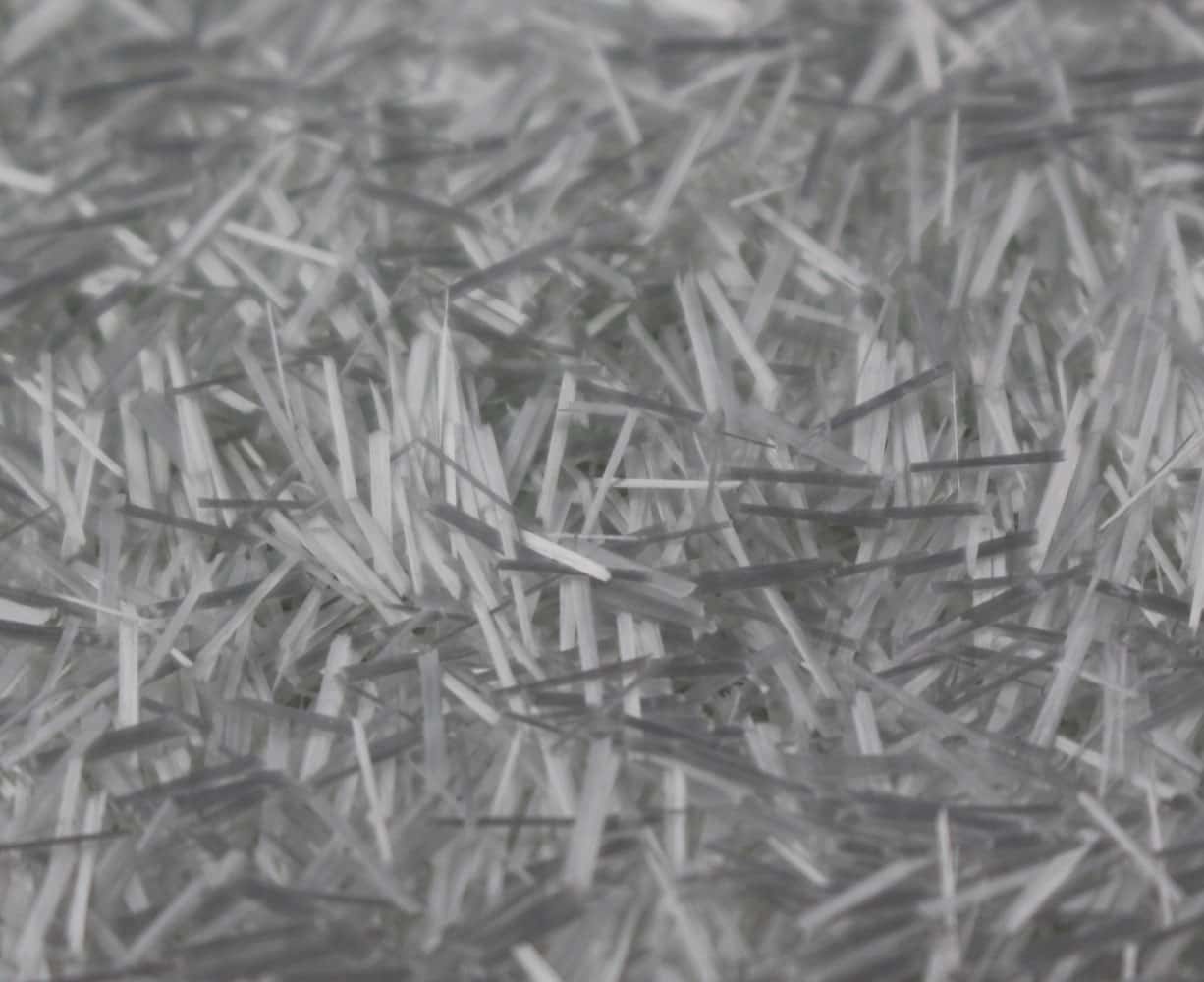

Surface-EXT product

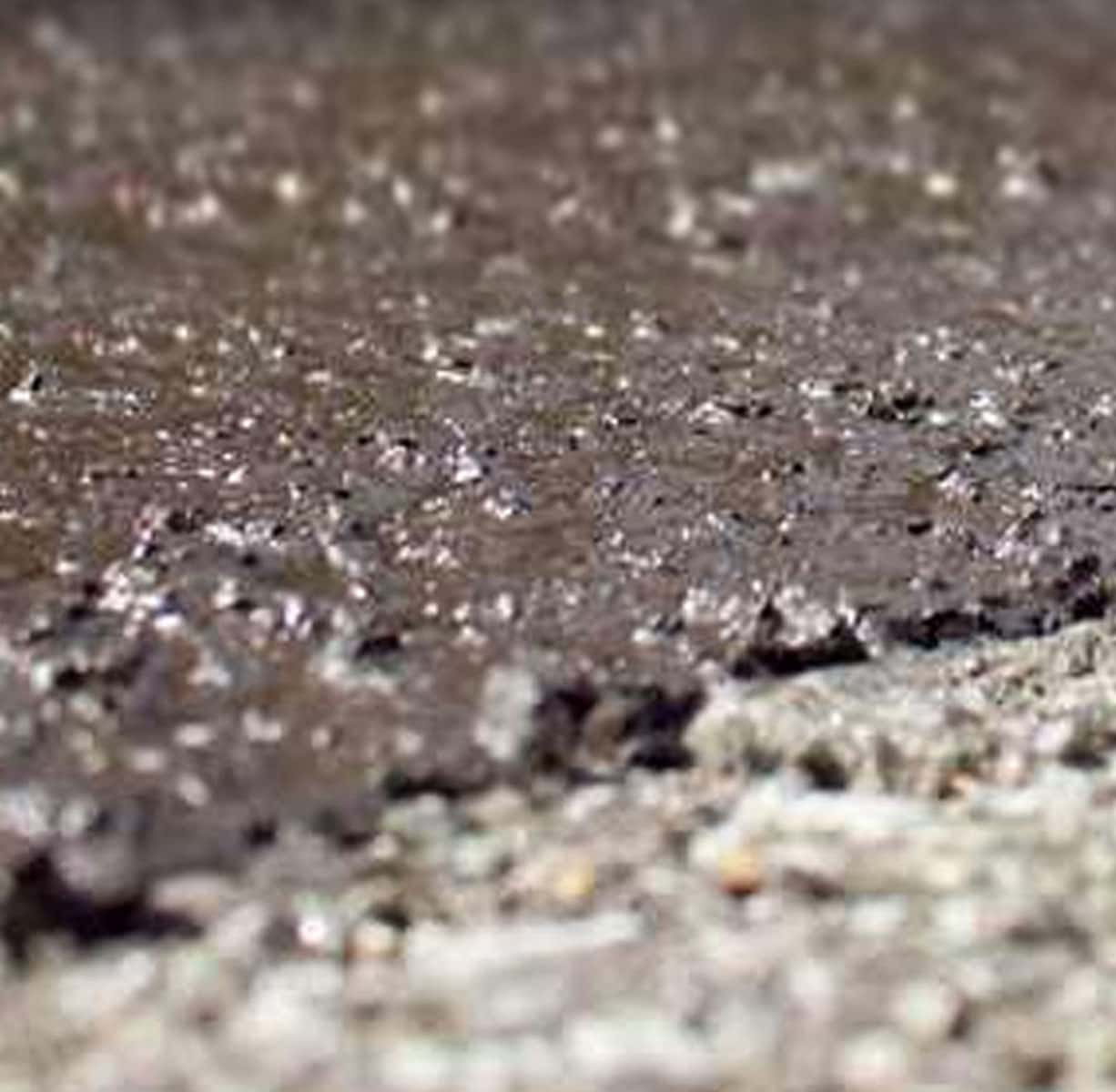

Surface-EXT application

Applications

  • Slurry seal and micro surfacing pavement applications
  • Designed to create a matrix in the mixture, linking the asphalt to the aggregate for additional durability

Features



  • Available as pre-chopped fibers for ease of use
  • Comes in 18 Kg bags, easily added to the Ranger automatic dosing feeder mounted on a slurry truck, feeding right into pugmill
  • The Ranger feeder can always stay on the machine, dispensing fibers as needed without altering mix design


    • Real-World Performance



    Field tests, such as those conducted at the Texas Station Hotel and Casino in Las Vegas, have shown that sections treated with Surface-EXT display significantly less cracking than untreated sections. Flexural tension testing by MWV Specialty Chemical revealed that adding Surface-EXT increased the average flexural bend from 9 mm to 54.5 mm.

    In another test at MnRoad, a Minnesota Department of Transportation test track, sections with Surface-EXT had significantly lower cracking and rutting percentages compared to control sections.


    Easy Integration

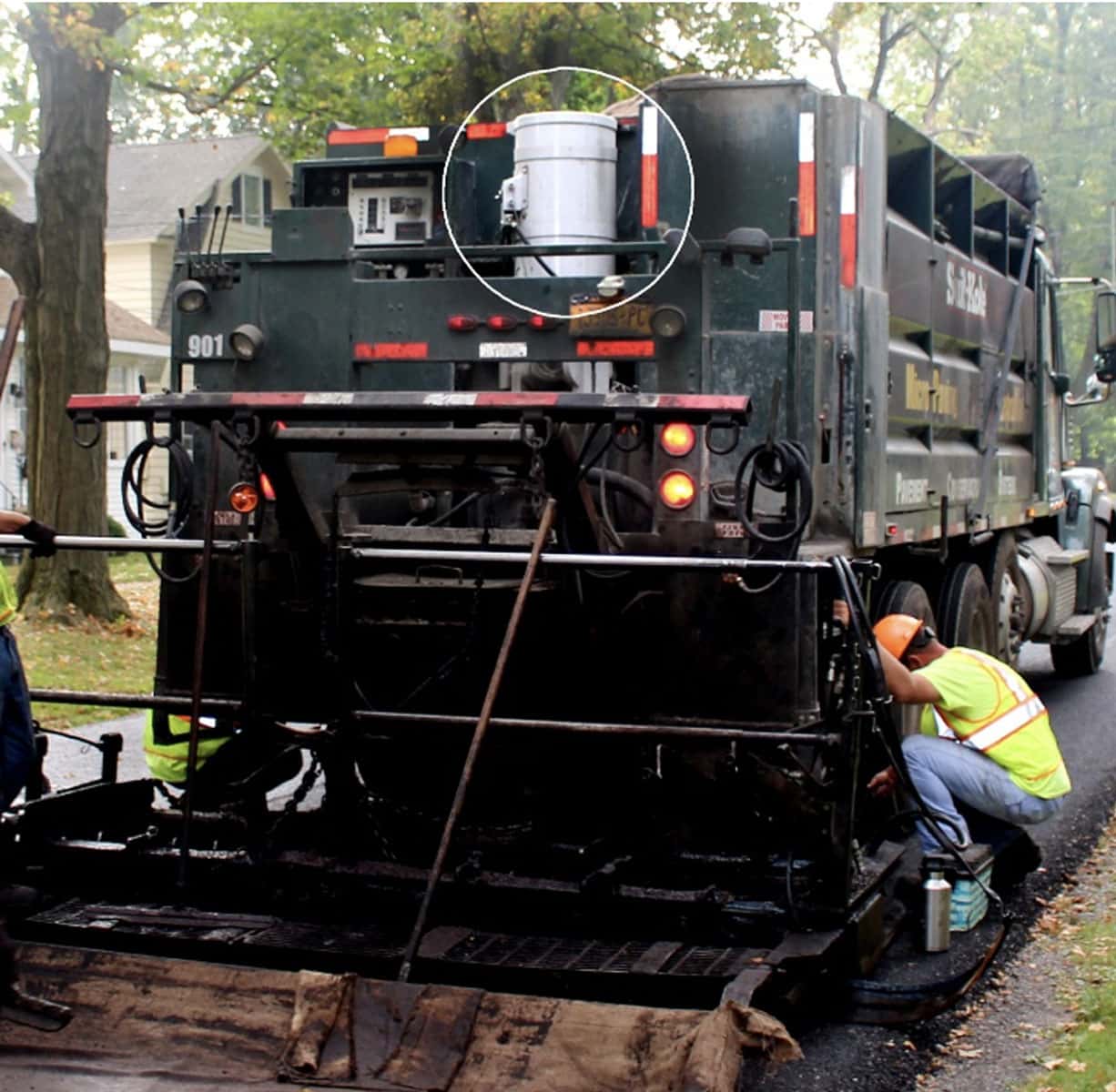

    Surface-EXT is incorporated into the mix using FORTA's patented Ranger feeder system, which can be mounted to any continuous or truck-mounted slurry or micro surfacing equipment in about one and a half hours. This allows for consistent and precise fiber distribution, enhancing the durability and strength of the pavement.

    Explore how Surface-EXT fibers can enhance your pavement projects with improved durability and flexibility, making maintenance more cost-effective and extending the life of your treatments.

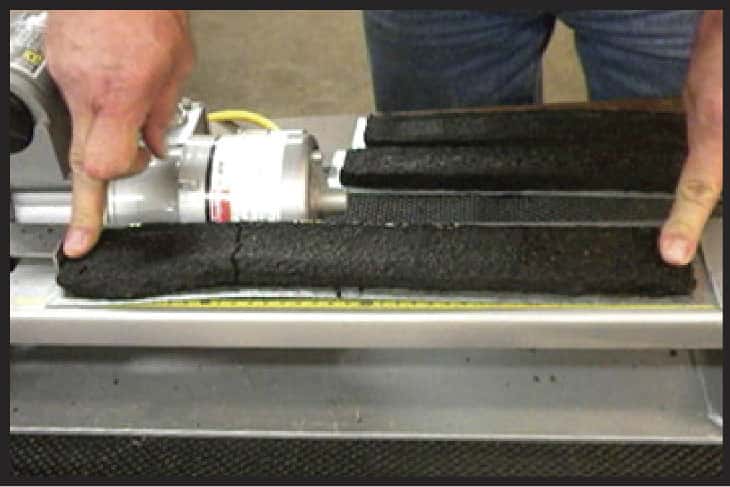

    Standard Mix

    STANDARD MIX
    NO FIBER

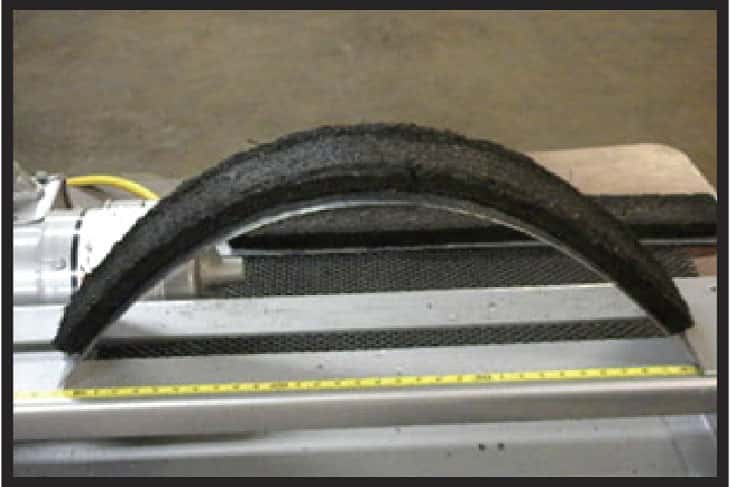

    Reinforced Mix

    REINFORCED MIX
    0.2 % DOSAGE OF ¼’’
    SURFACE-EXT FIBER
